76 x 346 Multi Functional Hanger 1 EA

£2.92
(Inc. 20% VAT)
In stock, immediate dispatch
+
Conforms to Eurocode 5 and service class 2




Specification
SKU Code
76346MFH
Bar Code
5022456315755
Brand
Pack Type
Unit
Pack Qty
1
Material
Carbon Steel
Finish
Galvanised
Corrosion Rating (1-5)
2 - Occasionally damp/wet, rural and sheltered areas
MOQ
10
MOQ Increment
10
Packs per Carton
10
Pack Dimensions L x W x H (mm)
85 x 76 x 135
Pack Weight (kg)
0.430
Approval
BS 5628
Total L (mm)
346
Type
Multi-Functional
W (mm)
76
T (mm)
2.0
Nail Holes (3.75mm)
49
Service Class
2
H (mm)
135
B (mm)
85
Characteristic Value (kN) For Eurocode 5
12.8
Eurocode
5
Safe Working For BS5268 (kN) Short Term
6.4
Safe Working For BS5268 (kN) Medium Term
6.1
Safe Working For BS5268 (kN) Long Term
5.3
Timco

Timco
Information

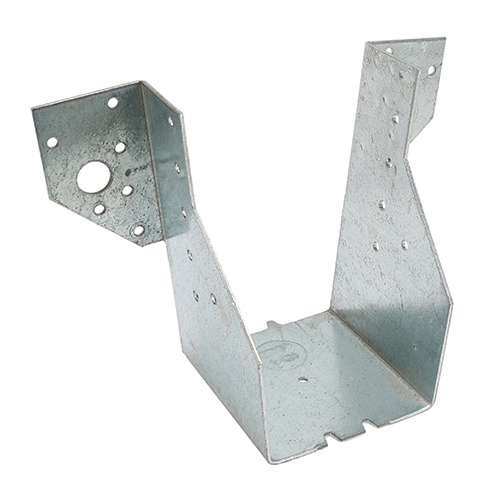

TIMco’s Multi-Functional Hangers are designed for applications where additional strength is required or where access to the top of the timber or steel is not available. Designed for use with different fixings to give greater flexibility and improved performance. Manufactured from pre-galvanised steel to give a high level of corrosion resistance. NOTE: Total length refers to the length of the hanger when laid flat.
