Home > Building Hardware & Site Protection > Builders Metalwork > Masonry Joist Hangers > Welded Masonry Hanger
Availability:
In stock, immediate dispatch
SKU Code: 90175WMHBar Code: 5022456319029Brand: TimcoPack Type: UnitPack Qty: 1Material: Carbon SteelFinish: GalvanisedCorrosion Rating (1-5): 2 - Occasionally damp/wet, rural and sheltered areasMOQ: 6MOQ Increment: 6Packs per Carton: 6Pack Dimensions L x W x H (mm): 165 x 90 x 80Pack Weight (kg): 0.710Approval: BS 5628Pack Quantity Unit: EachType: WeldedW (mm): 90T (mm): 2.4Nail Holes (3.75mm): 6Service Class: 2CE Standard: BS EN 845-1:2013H (mm): 165B (mm): 80Safe Working Load (kN): 3.5Characteristic Value (kN) For Eurocode 5: 6.7Joist Size W x H (mm): 90 x 175Eurocode: 6

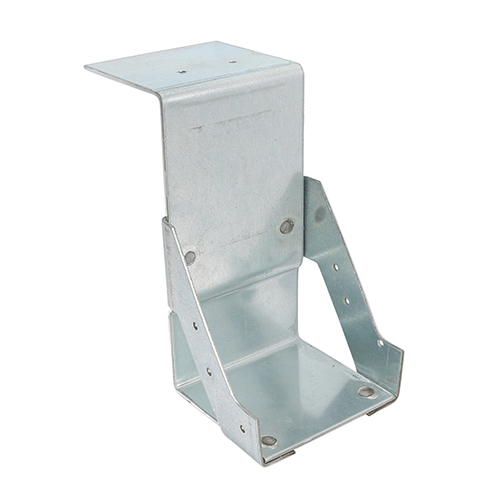

The TIMco Masonry Hanger range has been designed to support timber joists from a brick or block wall. Install by either building into the wall or for renovation work, rake out existing brickwork. Manufactured from pre-galvanised steel to give a high level of corrosion resistance.
